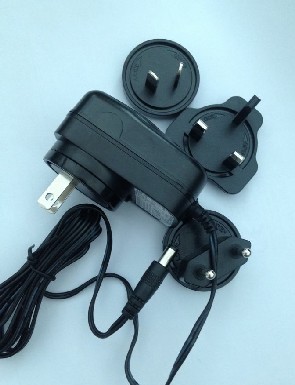

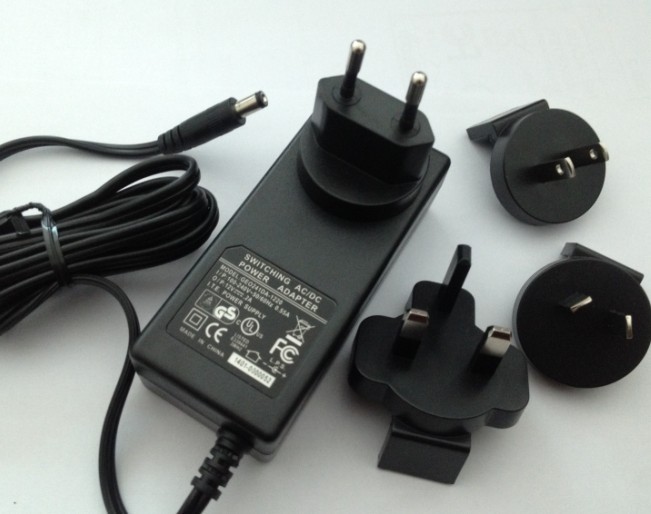

6W Switching AC/DC Power Adapter with Different Plug

Name: 6W Switching ACDC Power Adapter with Different Plug
Brand: BTB

Place of Origin : Shenzhen China

Brand Name : BTB

Certification : CE FCC UL GS SAA PSE Rohs CCC

Model Number : BTB-S12-24

MOQ : 500PCS

Price : 0.00

Packaging Details : Paper box

Delivery Time : 5-7days

Payment Terms : T/T L/C WESTER UNIN PAYPAL

Supply Ability : 10000000pcs

Contact Now

LED 5V 3.2A CHARGER swithcng power supply Mall mount adapter

Features of power adapter
Universal Input 100~240V AC 50~60Hz
Built-in Class B EMI FilterHigh Efficiency
Short Circuit protection Lightweight Compact

Electrical Specifications of the switching power adapter
(AC Input)Rated Input Voltage: 100~240V AC
Input Current: 0.45A(RMS) @ 115V AC0.20A(RMS) @ 230V AC
Input Frequency: 50~60Hz
Inrush Current: Max. 50A @ 230V Cold Start
Low Standby Power 0.3W Max
Output: 3~24VDC 15W Max.

Environmental Specifications of power adapter
Operating Temperature: 0~40C @ Max. LoadNon-operating Temperature: -40 C 85 C
Humidity: 5% to 95% Non-condensing
Safety Specifications of power adapter:
Standards Reference Class 11 SELV for the following agency Requirements:
CCC, UL, CSA950(cUL), TUV-GS, EMC, CB, FCC. NEMKO. RoHS

Mechanical Specifications of power adaptor
Weight Approx. 110g
Dimension L71.5mm(2.81'')W42.5mm(1.67') H48.5mm(1.90'')
Connectors DC Output: 1.8m wire, "H"shaped head or according to customers' choice.

Add to Basket

5v 4A 6V 3.8A 9V 2.6A 10V 2.4A 12V 2A 15V 1.6A 24V 1A Power adapters
UL / CUL / FCC / GS(LVD) CE / EMC / PSE
3C / C-TICK CEC

5v 4A 6V 3.8A 9V 2.6A 10V 2.4A 12V 2A 15V 1.6A 24V 1A Power adapters

Model name	INPUT	V	A
Model name	INPUT	V	A	BTB241DA-0540	5	4	20
BTB241DA-0638	6	3.8	22.8
BTB241DA-0926	9	2.6	23.4
BTB241DA-1024	10	2.4	24
BTB241DA-1220	12	2	24
BTB241DA-1516	15	1.6	24
BTB241DA-2410	24	1	24

Meet RoHs CEC		Electrical:
Features:		Dielectric: 3000VAC
Universal Input 100-240VAC		Burn-In Test: 100% Full Load
Modified and Custom Design Available		Leakage Current: 0.25mA @ 2pin
Output with Low Ripple Noise		Efficiency: Meet CEC
1 Year Warranty		MTBF: 50000 Hours


AC Input		DC output
Voltage Range: 90-264 VAC		Voltage Range: 5.0 - 24.0V
Input Frequency: 47-65 Hz		Current Range: 0.8A -4A
Input Current : 550mA max
Inrush Current : 30A max
Efficiency : 76% min

Safety Approval:		*Case Dimension: (LWHmm)*
UL / CUL / FCC / GS(LVD) CE / EMC / PSE		974535
3C / C-TICK CEC / Energy Star
